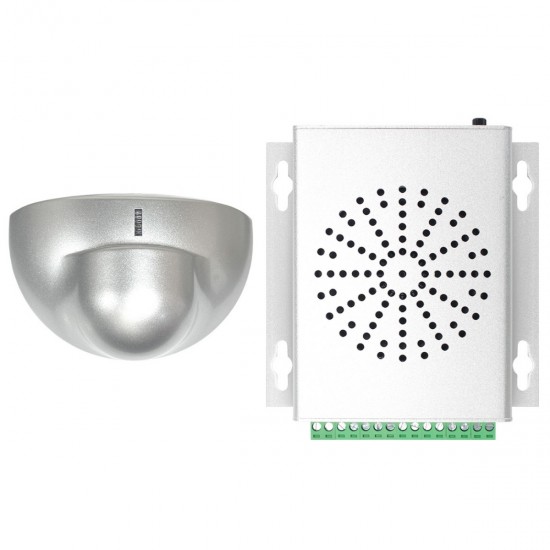

Unidirectional Microwave Sensor Activated Audio Player for Stores Custom Sound Welcome Door Greeter

Features

1. Equipped with a high quality unidirectional microwave radar sensor (frequency: 24.125GHz).

2. Uses a high quality triggerable MP3 audio player with internal 8MB flash memory.

3. Supports inserting USB flash drive and micro SD card as the extended storage devices.

4. Upload audio files on computer via USB connection like using any USB device.

   -The internal flash memory will be detected as a USB flash drive.

5. Built-in speaker unit and the sound is loud and clear.

6. Sound volume is adjustable through turning the potentiometer.

7. Able to drive an external equipment like a LED light simultaneously when it is playing a sound.

8. Equipped with a 3.5mm audio output jack that can be connected to an external amplifier or an active speaker.

9. Microwave sensor adopts exquisite ABS material made case.

10. Audio player adopts solid and durable aluminium alloy case.

11. Industrial grade design and stable performance.

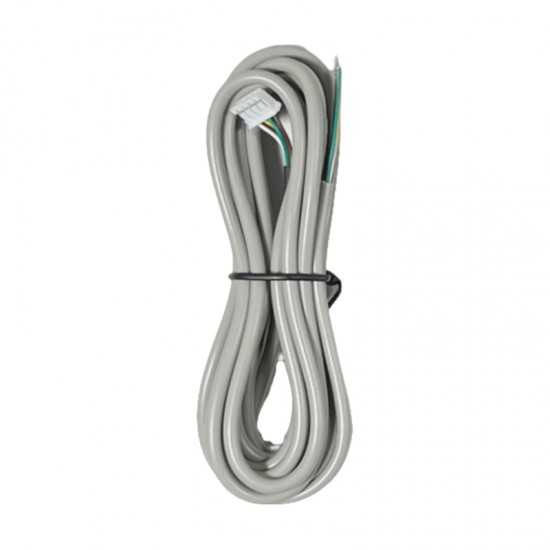

12. Wire length beween the sensor and the audio player: 2.2m

Technical Parameters

1. Working voltage: 12-30V DC

2. Working current: ≥1000mA

3. Power Consumption: ≤10W

4. Flash memory size: 8MB

5. Audio format: MP3

6. Transmission frequency: 24.125GHz

7. Transmitter power density: ≤5mW/cm

8. Max. mounting height: 5m

9. Detection mode: single/one direction movement detection

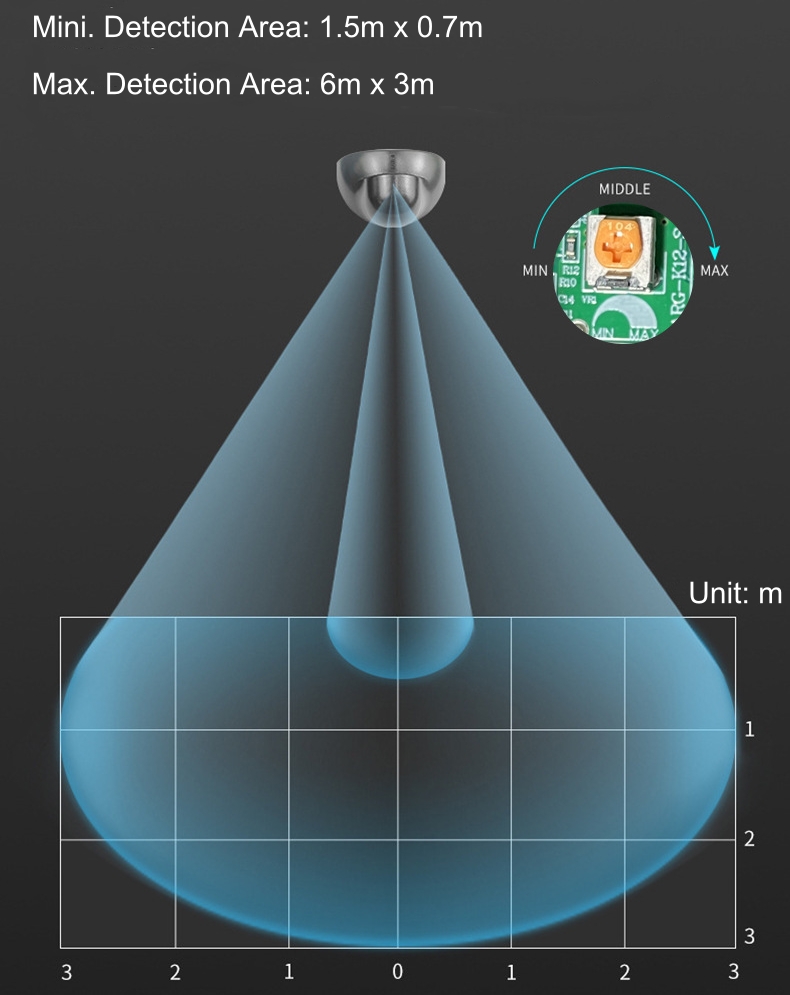

10. Detection range: 4m(W)×2m(D) (at installation height 2.2m)

11. Min. detection speed: 5cm/s (along the longitudinal axis of the sensor)

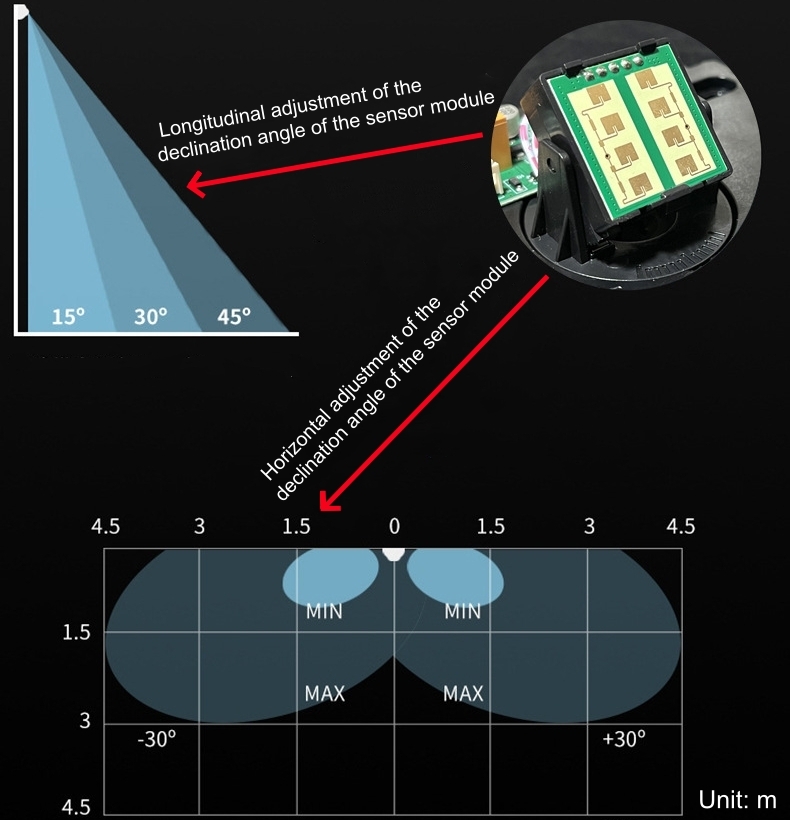

12. Mounting declination: 0°~90° longitudual; -30°~+30° horizontal

13. Output mode: relay (potential free contact)

14. Hold time: 1.5s

(item #6-14 is for the microwave sensor only)

Dimensions

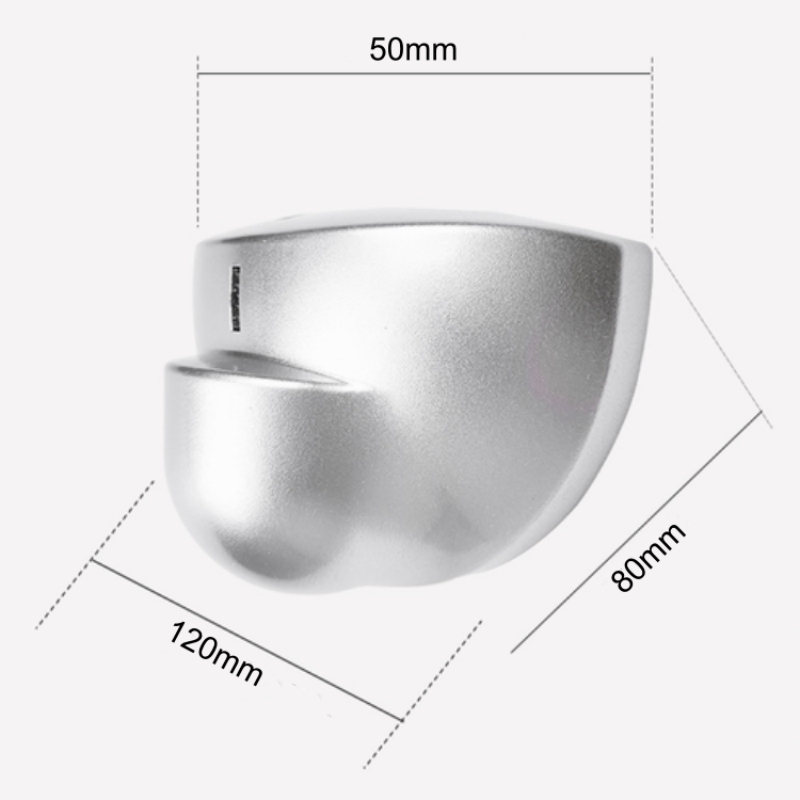

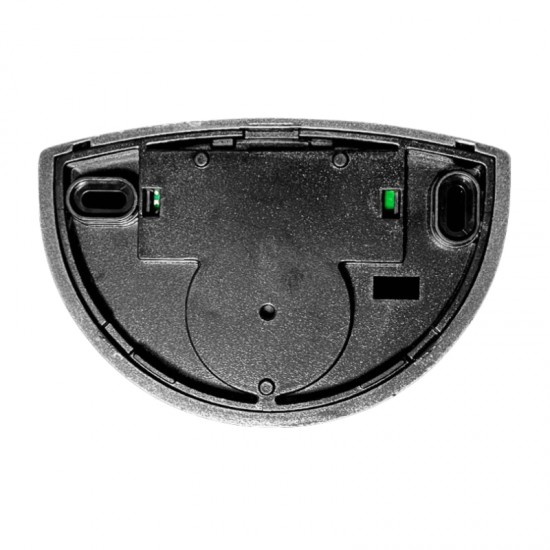

1. Microwave Sensor

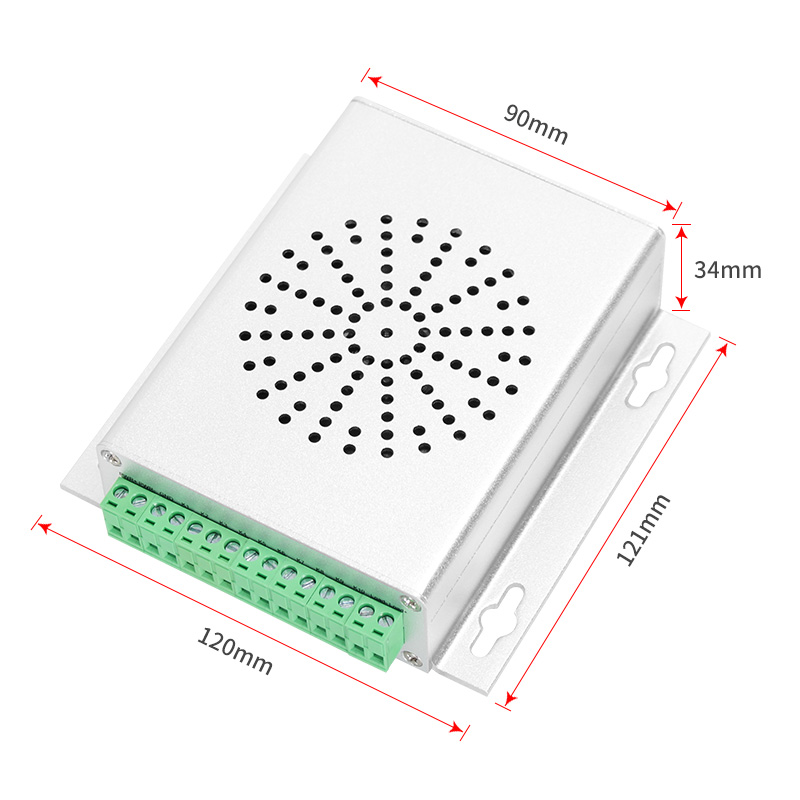

2. Audio Player

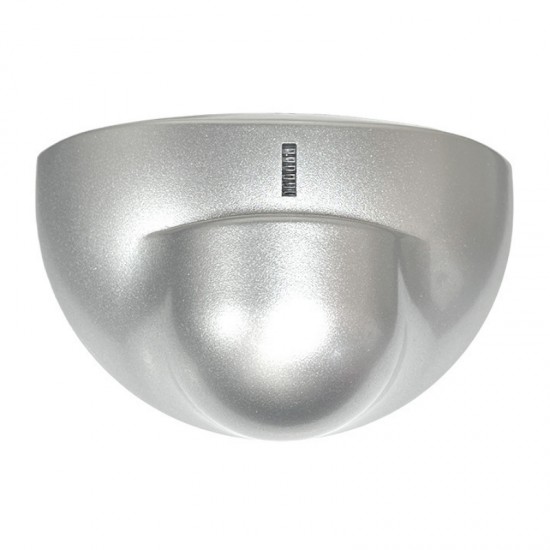

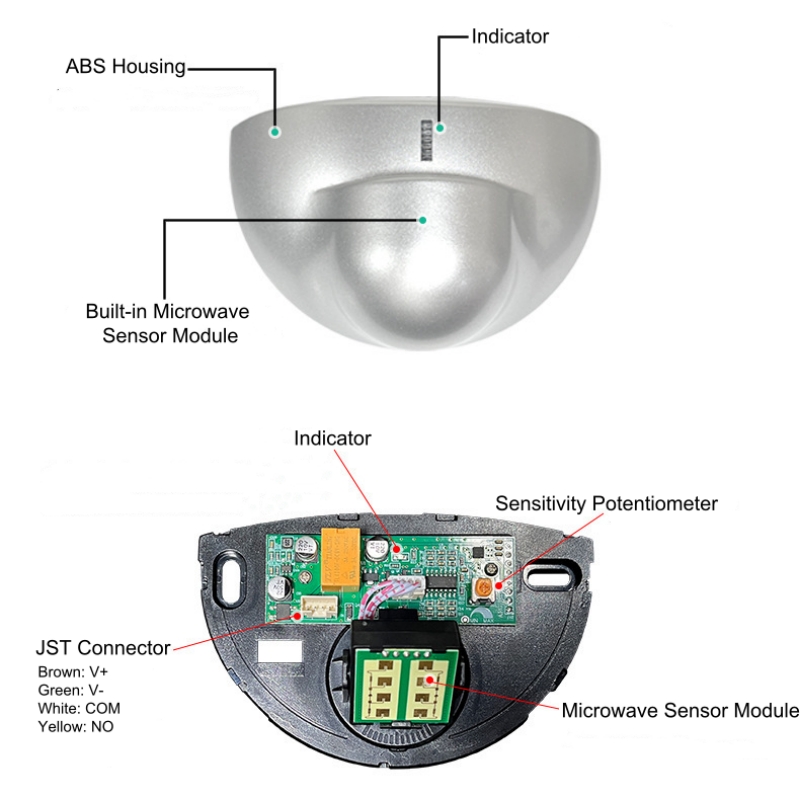

More Info about the Micriwave Sensor

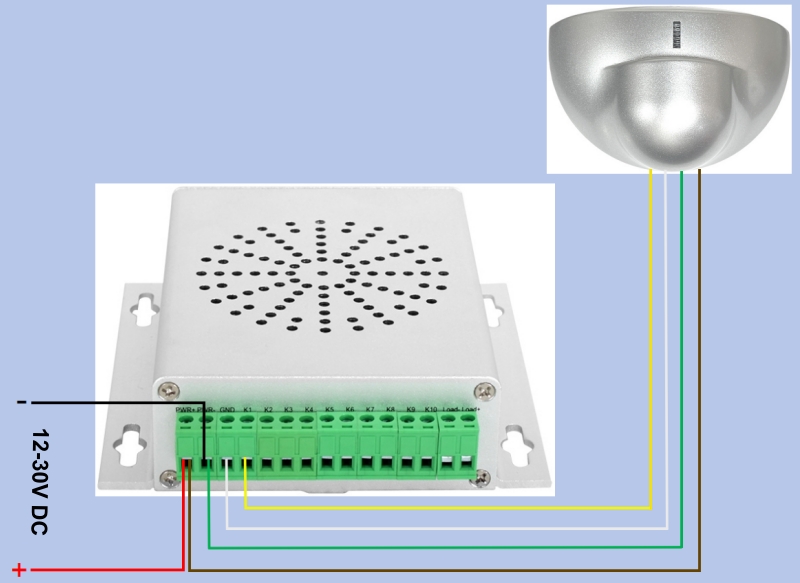

Wiring Example

Please leave the terminals K2-K10 alone, which were designed for other purposes. If you want to turn on an external LED light when the device is playing a sound, you can use the last two teriminals Load- & Load+, which outputs the same voltage as the voltage you supply to the device, so suppose you supply a 12V power source to the device, you need to make sure the LED light can also work on 12V as well.
