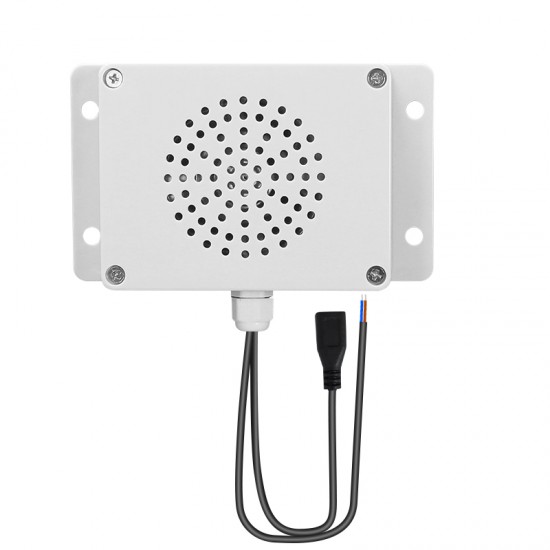

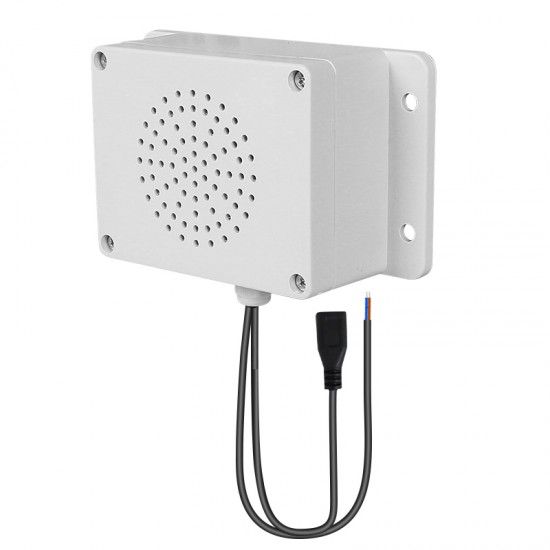

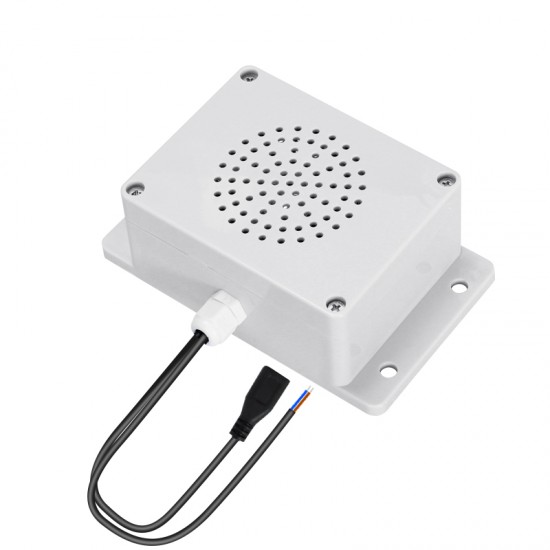

Waterproof Triggerable Audio Player Weatherproof Sound Player Programmable Voice Announcer with One Trigger for Outdoors
Features
1. Adopts a solid and good sealed plastic case as well as a quality waterproof speaker.
2. Built-in a high quality MP3 player with great sound quality.
3. Equipped with a 8MB flash memory that can store about 8 minutes long MP3 format files (128Kbps).
4. Equipped with a micro SD slot and supports max. 32GB micro SD card on the internal circuit board.
5. Update audio files easily through USB connection to computer.
-It’ll work as a USB flash drive on computer.
6. Supports loading multiple audio files into the memory.
7. Supports two trigger modes (play next file and play a file in random) after each activation when there are multiple files.
8. Can be triggered to play a sound by negative triggering or inputting a low level pulse signal.
9. Can be connected to a button, switch, relay, PIR sensor, or an equipment with alarm output (low pulse signal).
10. Equipped with a high quality class D amplifier IC for a loud sound output.
11. Volume is adjustable through turning the small blue potentiometer on the internal circuit board.
12. Industry grade design and stable performance.
13. Cable length: about 50cm
*When you need to adjust the volume or insert a micro SD card, you need to open the case first and find the internal circuit board.
Technical Parameters
1. Working voltage: 12-24V DC
2. Working current: ≥1000mA
3. Power Consumption: ≤10W
4. Flash memory size: 8Mbytes
5. Audio format: MP3
6. Sound pressure level: ≤100dB
7. Protection class: IP65
Dimensions
Wiring Example
Notes:
1. The yellow wire is the trigger input terminal and the green wire comes from the ground.
2. The yellow wire also can be connected to a PLC or an industrial controller, which outputs a low level signal to trigger the player. The PLC/industrial controller needs to share the same ground with the player first.
$47.99
- Stock: 100
- Model: FN-AS115
- Weight: 0.50kg
- Dimensions: 152.00mm x 91.00mm x 60.00mm
